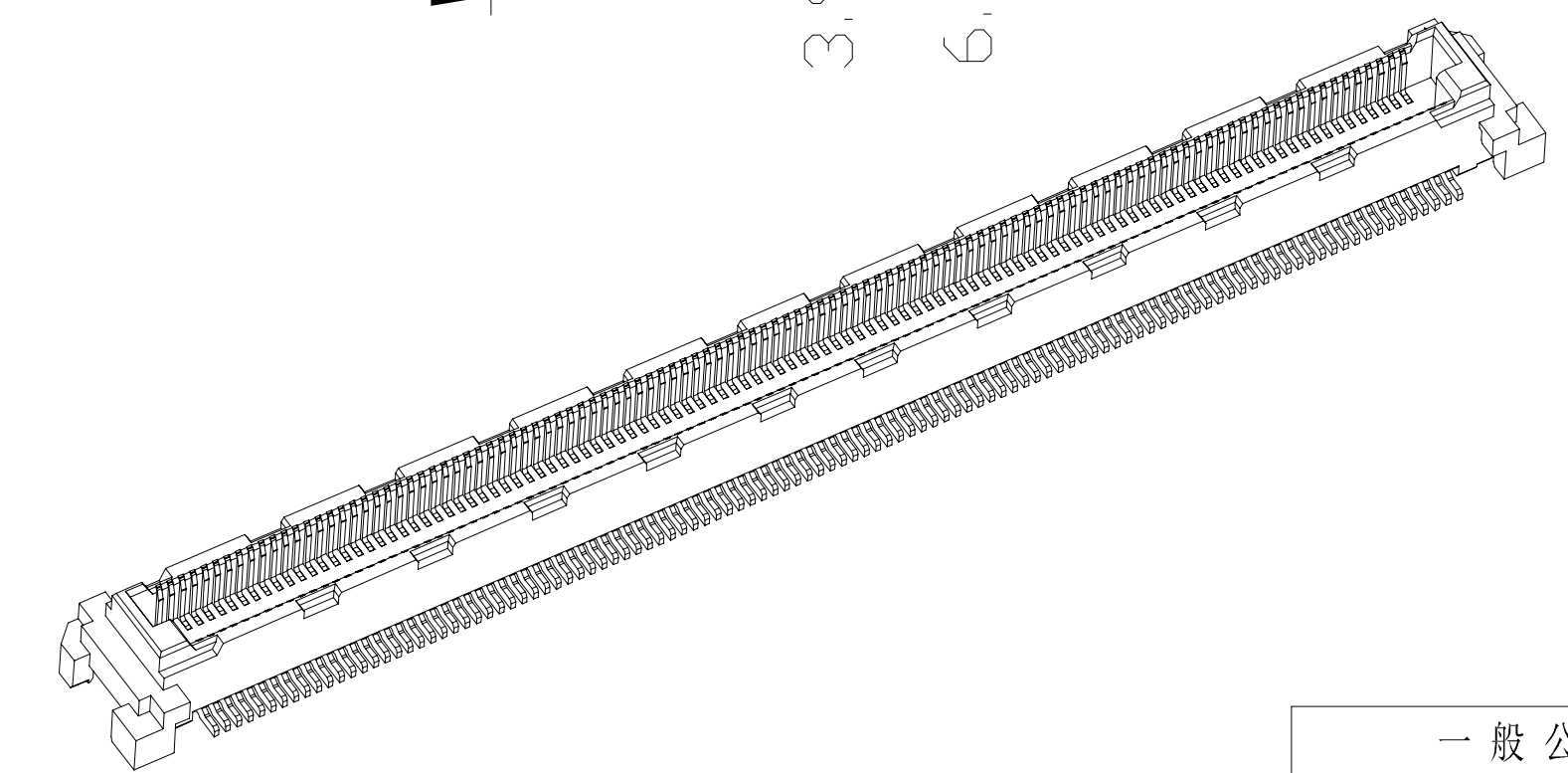

PH0.5mm 间距、H6.00mm合高、POS 80-220pin 、双排镀金、速度可达16G 公头
Note:
Machanical
Mating force:40.0kgf max
Unmating force:4.4kgf Min
Durability:30Cycles
Electrical
Current Rating:0.5A max。Percontact
Contact Resistance:55m2 max(Initial),75mΩ max(After)
Dieletric Withstanding Voltage:200VAC
Insulation Resistance 100mega ohms min. at 500 VDC
Physical
Housing:thermoplastic, UL 94V-0 rated,inWhite Color
Contact: Copper alloy
Operating Temperature:-40'C to +85°C
